Apollo Solar/Electric™ 102
Above-Well Drive Motor with Solar Option
Description

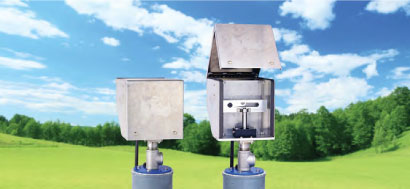

The Apollo™ 102 is a linear-rod piston pump powered either by solar panels (with or without batteries) or an electric power supply. The highly efficient 1/4 hp.driver is mounted at surface grade above the wellhead for simple installation and maintenance. The pump removes product (i.e. leachate, hydrocarbons) from a three-inch (7.62 cm) diameter well casing or greater, at depths to 80 feet (24.38 meters) with a flow range to 2.7 gpm (10.23 lpm). The fluid inlet is located at the bottom of the pump intake cylinder and removes water or product at steady flow rates to 0 submergence depth. The solar option is ideal for remote locations and other situations without electricity or pneumatic power.
Key Applications
- Landfill Leachate
- Gas Well Dewatering
- Gas Condensate Pump
- Directional Wells
- Ground Water Remediation
- Remote Sites
- DNAPL Recovery and LNAPL Recovery
