Edge Pneumatic Piston Pump is our most economical.

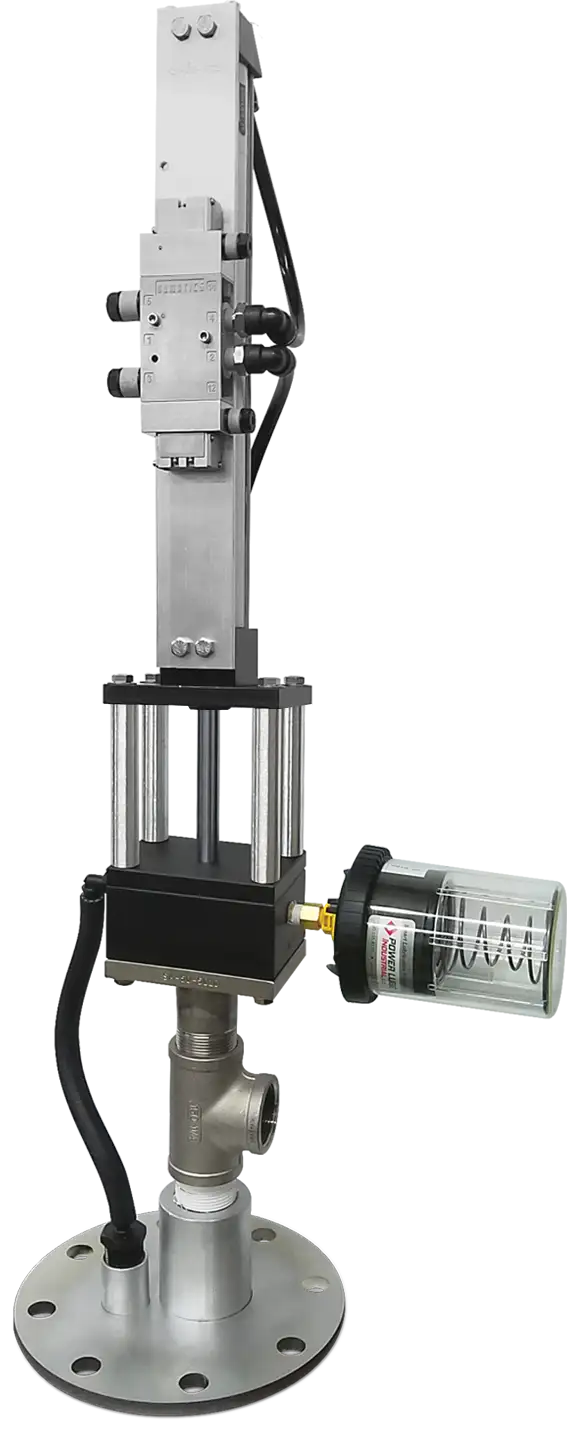

The Edge Pneumatic Piston Pump®
The Edge Pneumatic Piston Pump™ is Blackhawk’s most economical pneumatic reciprocating piston pump, comparable in price to popular airlift models, yet more powerful. It is designed as a rugged, reliable everyday pump suited to several environments including landfill leachate, gas-well dewatering and floating-product remediation. Model 101 maintains steady flow to depths of 281 feet (85.6 meters).
All three Edge models are reciprocating rod, positive-displacement piston pumps powered by industrial-quality compressed air. The motors are at surface grade, above the wellhead for easy installation and maintenance. Power to the pump is direct from surface through the sucker-rod assembly. The fluid inlet is at the pump bottom intake and removes fluid to 0 submergence depth.
Key Applications
- Landfill Leachate
- Gas Well Dewatering
- Gas Condensate Pump
- Directional Wells
- Ground Water Remediation
- Recovery
I&O Manual
A manual for installation, maintenance and troubleshooting of the Edge Pneumatic Pump.
Product Sheet
An overview of the Edge Pneumatic Pump.
Technical Data Sheets
Model 101 maintains steady flow to depths of 281 feet (85.6 meters).
Model 102 maintains steady flow to depths of 119 feet (36.2 meters).
