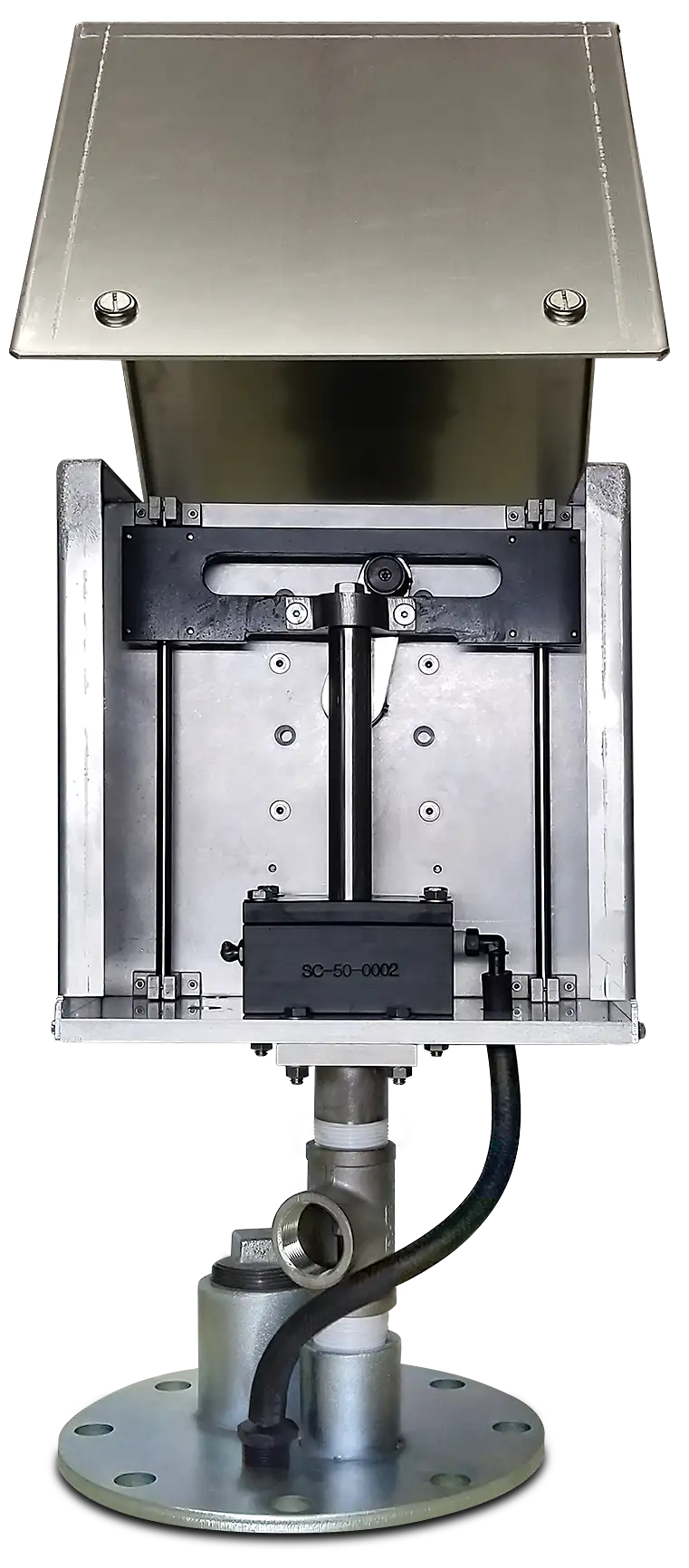

Apollo-AC Electric Piston Pump™
The Apollo-AC Electric Piston Pump™ is designed in response to customers’ desire for a grid-power version of the highly regarded Apollo Solar Piston Pump™ and its simple, linear-rod driver.
In addition to lower prices and lower amp draws, the Apollo-AC combines the convenience and constancy of 24/7 grid power with the reliability, low maintenance and easy installation that define Apollo pumps.
As with other Blackhawk top-head-drive piston pumps, all power and driver mechanical components are cleanly and safely above the wellhead. There is no high-pressure air or electricity introduced below surface grade. The pumps, which are not affected by changes in differential pressure either in the bore or on the surface, are environmentally friendly and do not emit greenhouse gases. The Apollo-AC Electric employs a 3/8-hp, DC motor operating from converted AC grid electricity. The unit can be installed at any angle to horizontal and pumps virtually anything flowable.
Key Applications
- Landfill Leachate
- Gas Well Dewatering
- Directional Wells
- Ground Water Remediation
- DNAPL Recovery and LNAPL Recovery
Features / Benefits
- Rugged
- Non-polluting
- Above-grade mounting
- Few moving parts
- Safer, easier, less-frequent servicing
- Lower power requirements
- Adaptable to site requirements
- Portable
- Affordable
- Apollo Family of Products
I&O Manual
A manual for installation, maintenance and troubleshooting of the Apollo-AC Pump.
Product Sheet
An overview of the Apollo-AC Electric Pump.
Technical Data Sheets
Model 101 operates to depths of 230 ft (70 m) with flows to 1.4 US gpm (5.3 lpm).
Model 102 offers flows to 3.5 US gpm (13.5 lpm) at depths to 100 ft (30.5 m).
