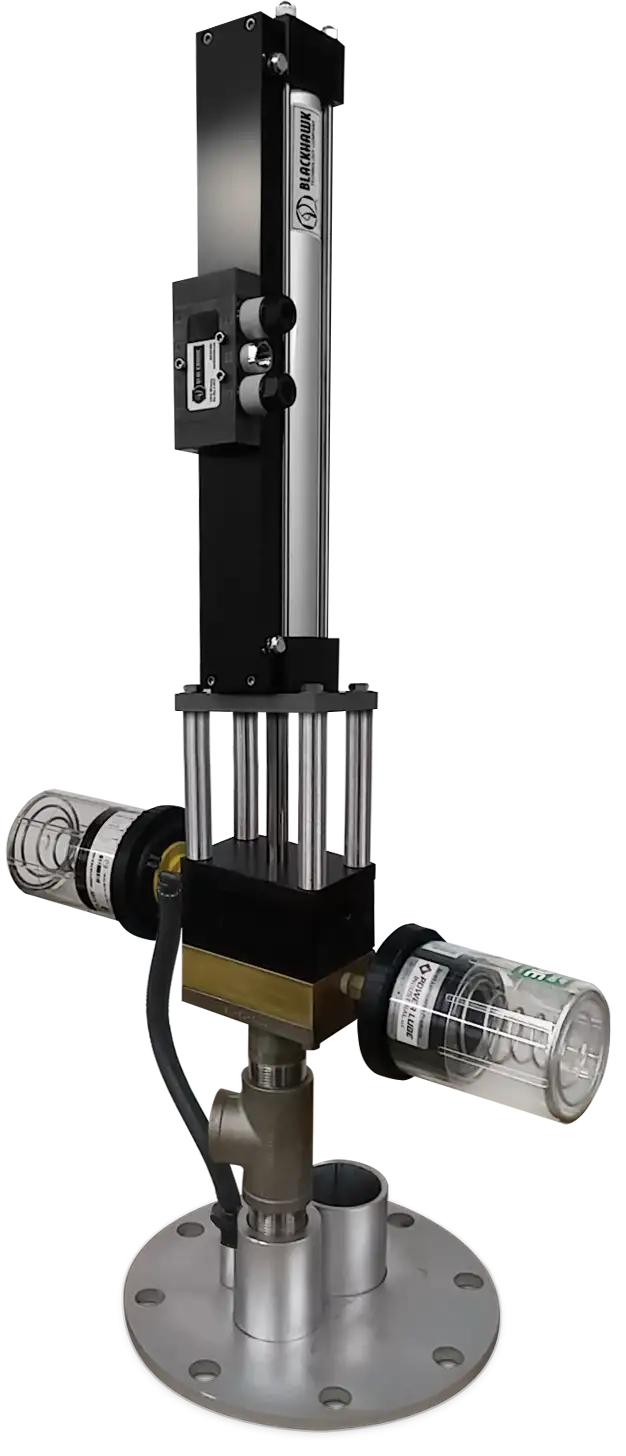

The V-2 Pneumatic Piston Pump™
Blackhawk’s most versatile pneumatic reciprocating piston pump, the V-2 is designed for the broadest range of pumping applications and environments, including hot or harsh landfill leachate, gas-well dewatering, condensate-recovery sump, hydrocarbon remediation, and groundwater pump applications. Model 101 maintains steady flow to depths of 555 feet (169 meters).
All three models of the V-2 are reciprocating rod, positive-displacement piston pumps powered by industrial-quality compressed air. The motors are at surface grade, above the wellhead for easy installation and maintenance. Power to the pump is direct from surface through the sucker-rod assembly. The fluid inlet is at the pump bottom intake and removes fluid to 0 submergence depth.
Key Applications
- Landfill Leachate
- Gas Well Dewatering
- Directional Wells
- Ground Water Remediation
- DNAPL and LNAPL Recovery
I&O Manual
A manual for installation, maintenance and troubleshooting of the V-2 Pneumatic Pump.
Product Sheet
An overview of the V-2 Pneumatic Pump.
Reconditioning Guide
A poster with specifics on maintenance and reconditioning a V-2 Pneumatic Pump.
V-2 Drive Motor Assembly
A poster with specifics on V-2 Drive Motor Assembly.
Technical Data Sheets
Model 101 maintains steady flow to depths of 555 feet (169 meters).
- V-2 Model 102 Technical Data
Model 102 maintains steady flow to depths of 243feet (74 meters).
At 11.0 gpm, Model 103 has the most powerful lift of the V-2 line and maintains steady flow to depths of 84 feet (25.6 meters).
